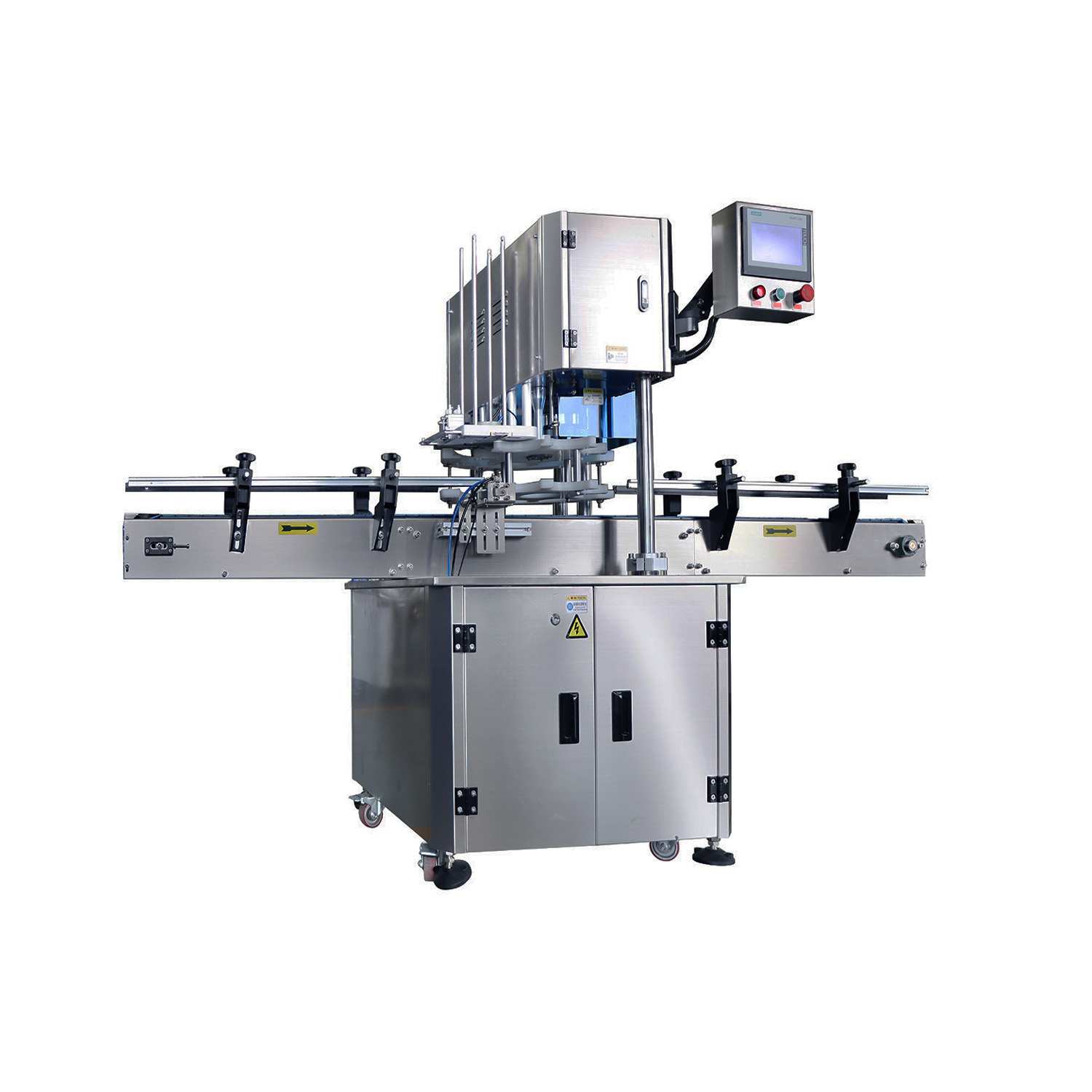

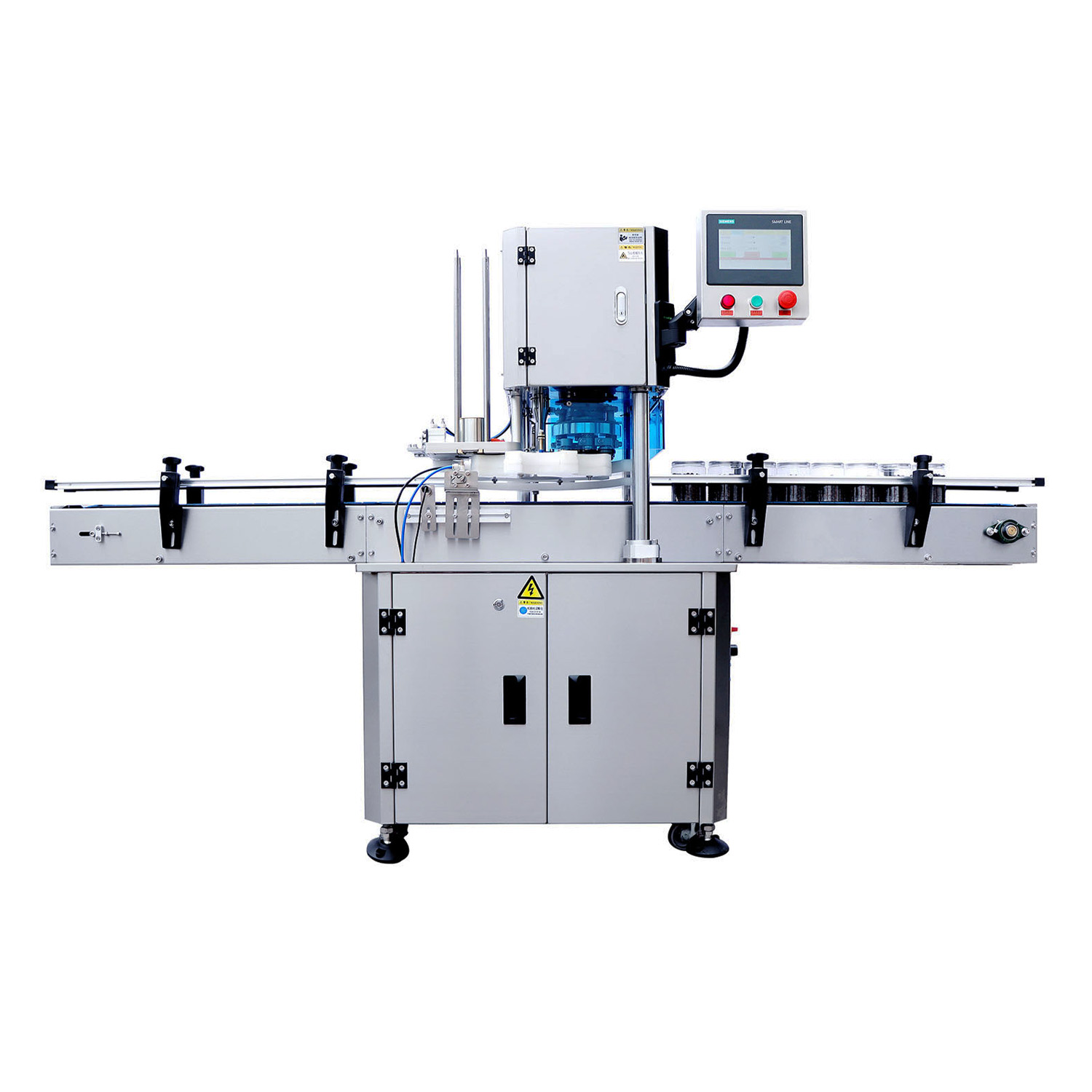

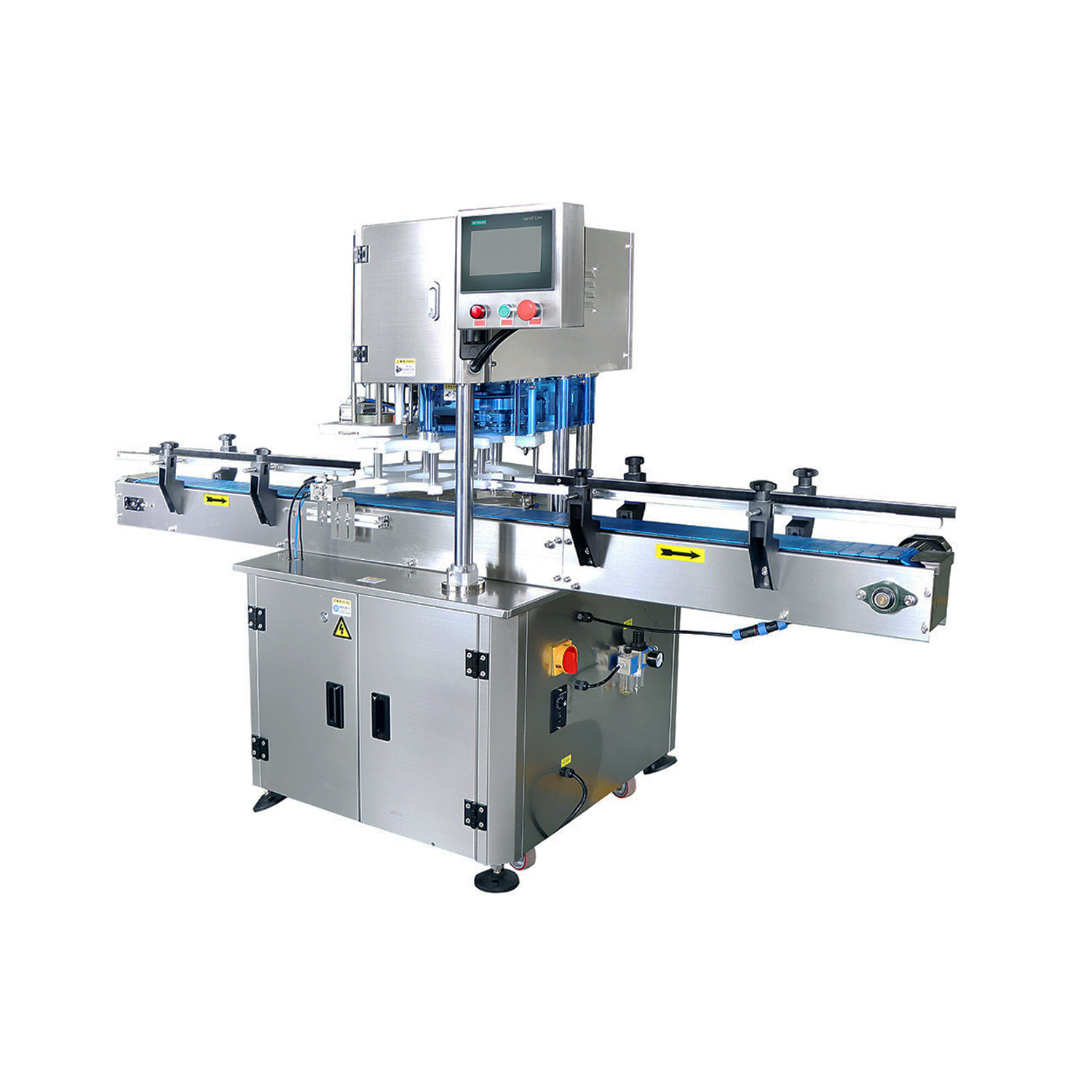

Automatic Can Sealing Machine

Discover the pinnacle of can sealing technology with our Fully Automatic Can Sealing Machine, engineered for maximum efficiency, safety, and adaptability. This machine is entirely servo-controlled, ensuring safer, more stable, and smarter operations.

This Fully Automatic Can Sealing Machine is your answer to high-volume, high-quality can sealing needs, ensuring your production line is both efficient and cost-effective. Whether you’re sealing cans for beverages, foods, or other products, this machine adapts to your needs, ensuring safety, quality, and performance.

Request Pricing or More Info

Key Features:

  • Servo Control System: Enhances safety and stability with automatic adjustments and smart operations. The turntable activates only when a can is present, with adjustable speeds to match production needs.
  • Safety Mechanisms: Equipped with sensors that halt operations if a deformed can or foreign object jams the turntable, protecting both the equipment and the operator. The machine can troubleshoot and restart, minimizing downtime and boosting efficiency.
  • High-Quality Sealing: Utilizes four sealing rollers (2 first sealing rollers, 2 second sealing rollers) for simultaneous sealing, ensuring a high-quality seal. Made from Japanese mold steel, these rollers offer high hardness and finish for smooth, compact, leak-proof seals with a service life of up to 10 million cans.
  • Advanced Control Systems: Runs on a Siemens PLC control system and incorporates German SIKE sensor technology for precise control over sealing and filling processes, enhancing product quality and production safety.
  • Versatility: Capable of handling various can sizes, shapes, and materials, reducing the need for multiple machines and thereby lowering operational costs. The can body remains stationary during sealing, ideal for fragile or liquid contents.
  • Automation: Features automatic lid opening and sealing, significantly increasing production efficiency while reducing labor costs.
  • Low Maintenance: Designed with simplicity in mind, the machine has a straightforward mechanical structure, leading to low maintenance costs and quick repairs to minimize production interruptions.

Technical Specifications:

  • Number of Sealed Heads: 1
  • Number of Sealing Rollers: 4
  • Can Sealing Speed: 20-55 cans/minute (adjustable)
  • Can Sealing Height: 25-220mm (additional molds for larger spans)
  • Can Sealing Diameter: 30-110MM (8 stations), 60-160MM (6 stations)
  • Air Consumption: 150L/min
  • Working Air Pressure: ≥0.6MPa
  • Power Supply: Single-phase AC220V 50/60Hz
  • Total Power: 1.7KW
  • Net Weight: 330KG (approx.)
  • Gross Weight: 400KG (approx.)
  • Conveyor Belt Height: 850mm
  • Main Material: 304# stainless steel

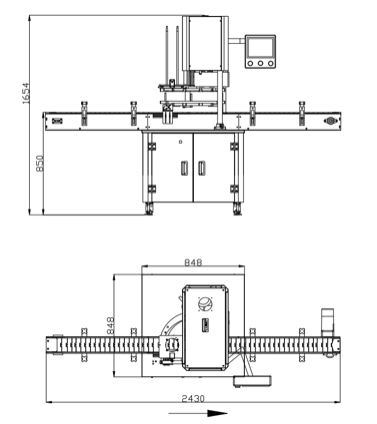

  • Dimensions: L 2430mm x W 848mm x H 1654mm (approx.)
  • Packing Size: L 1210mm x W 960mm x H 1730mm
