Product Description
- The whole machine is controlled by servo, the torque is adjustable and controllable, and the capping is accurate
- Simulate human hands to grasp the cap in parallel and accurately, without jamming the teeth, not damaging the cap, and screwing the cap smoothly and accurately.
- Quickly change molds in one minute, easily solving the problem of capped bottles with multiple sizes.
- The internationally renowned brand Siemens PLC control system and German Sick sensor technology are used to ensure stable operation and ultra-high-precision capping during the production process of the equipment. The capping accuracy is as high as 99.99%, ensuring product quality and production safety.
- It has strong versatility and can adapt to bottles of different specifications and shapes, as well as bottles of different materials to adapt to different production needs and greatly reduce the operator’s machine costs.
- High degree of automation, automatic cap lowering and automatic cap screwing, which greatly improves production efficiency and reduces operating costs for business operators.
- Low maintenance cost, the equipment’s mechanical structure is simple and easy to operate, low maintenance cost, and easy to repair, which reduces production losses caused by downtime for maintenance.
Product Parameters：
- Lower cap form: Air claw grabs the lower cap.
- Cap sorting method: Lifting and sorting caps, different cap replacement guide rails and cap feeding and bottle holding components
- Lower cap speed: 600~9600 pieces/hour
- Capping method: servo limited torque gripping capping
- Capping speed: 1500~2600 bottles/hour
- Total power: 1.8KW
- Power supply: AC220V 50/60Hz
- Working air pressure: 0.5-0.6MPA
- Air consumption (compressed air): 170L/min
- Applicable range: lid diameter 20-120mm, can/bottle height 30-250mm, can/bottle diameter 30-100mm
- Conveyor belt height: 850mm
- Equipment main material: 304# stainless steel

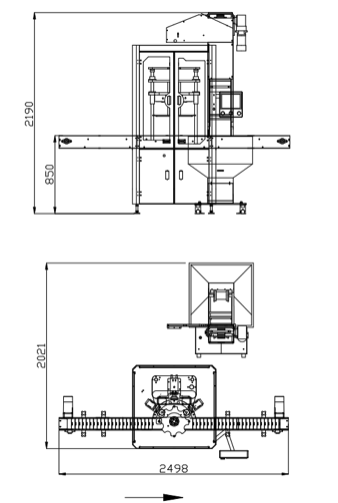

- Equipment appearance dimensions: length 2498*width 2021*height 2190mm (approx.)
- Packing wooden box size: Host machine: length 1240*width 890*height 1970MM Lid sorting and lifting machine: length 2240*width 810*height 1140MM
